Project Description

Delivering more than 30% overall ROP improvement with new designed G1 & G2 stabilizer.

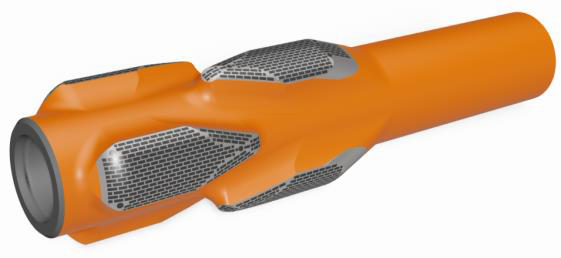

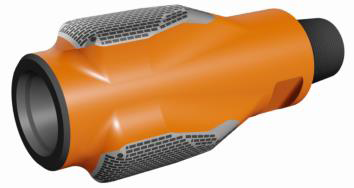

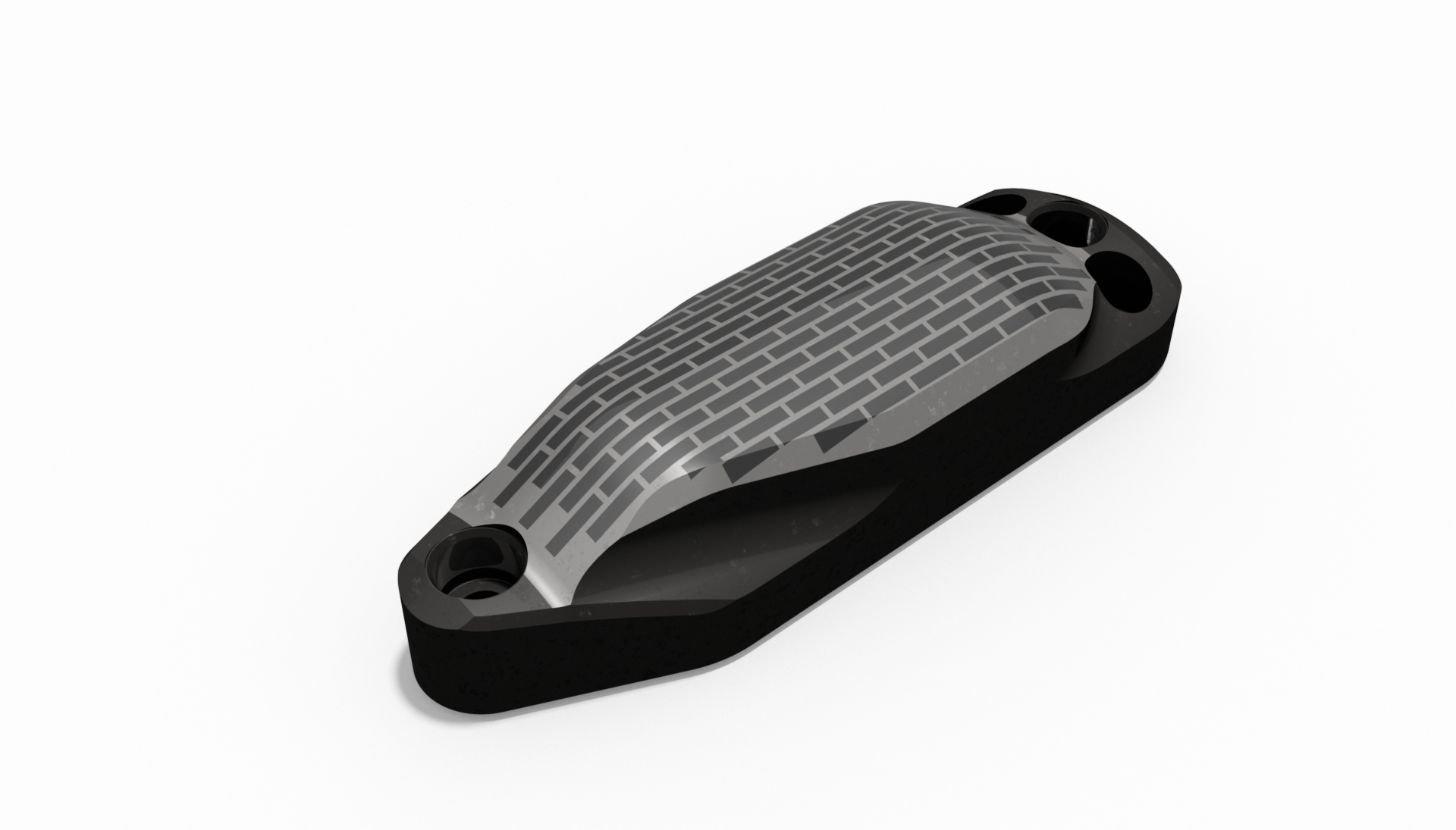

The Switchblade design addresses the known issues of the conventional blade stabilizer with its enhanced hydrodynamic profile and versatility. The system is ideal for a field development or remote operating location as the blades are rig site replaceable to reduce unnecessary inventory and transportation costs.

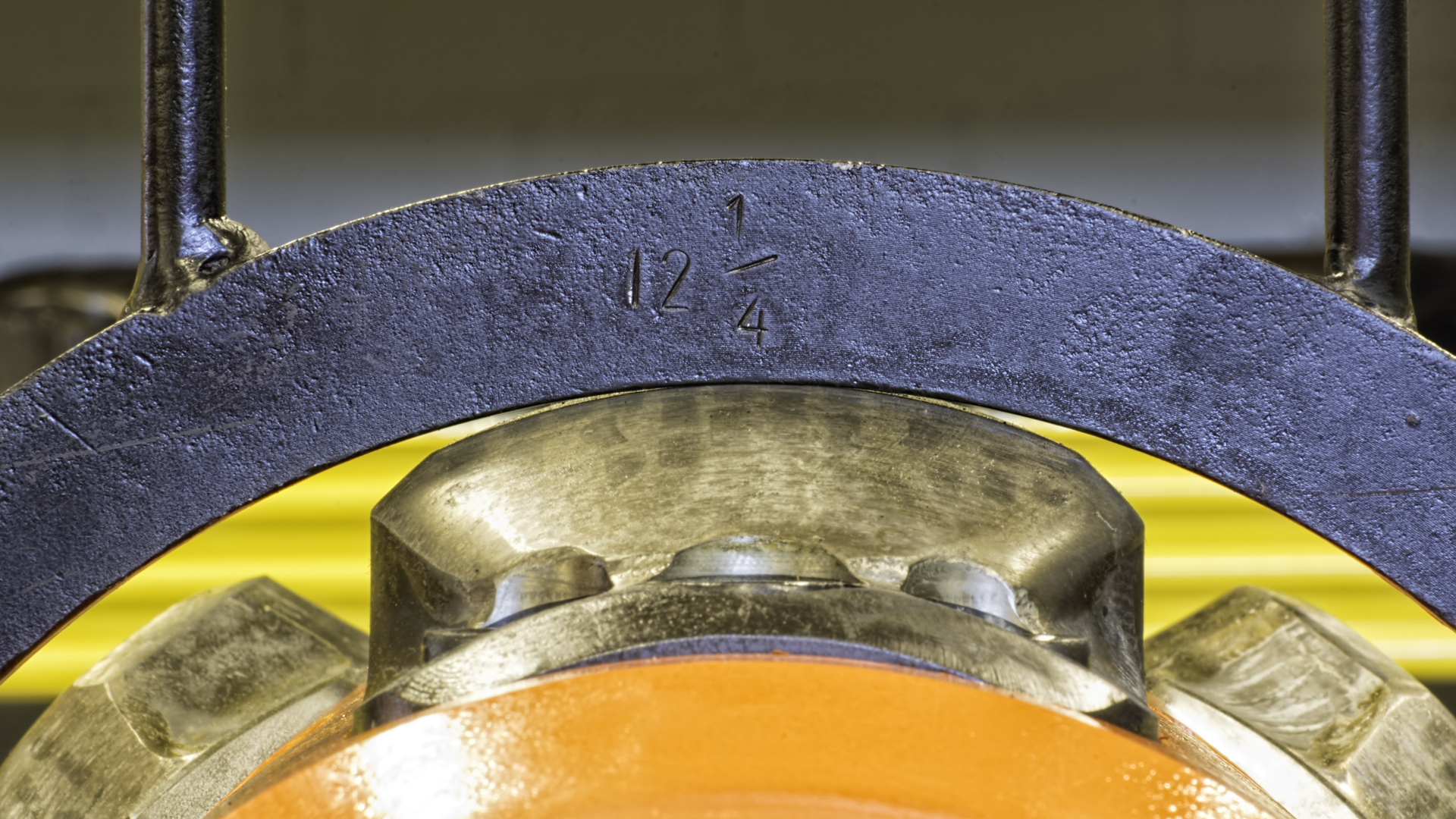

The outer diameter of the blades can be adjusted on the surface to cover a 1” range this flexibility enables the onsite engineer to configure/fine-tune the BHA to cover a wide range of drilling applications.

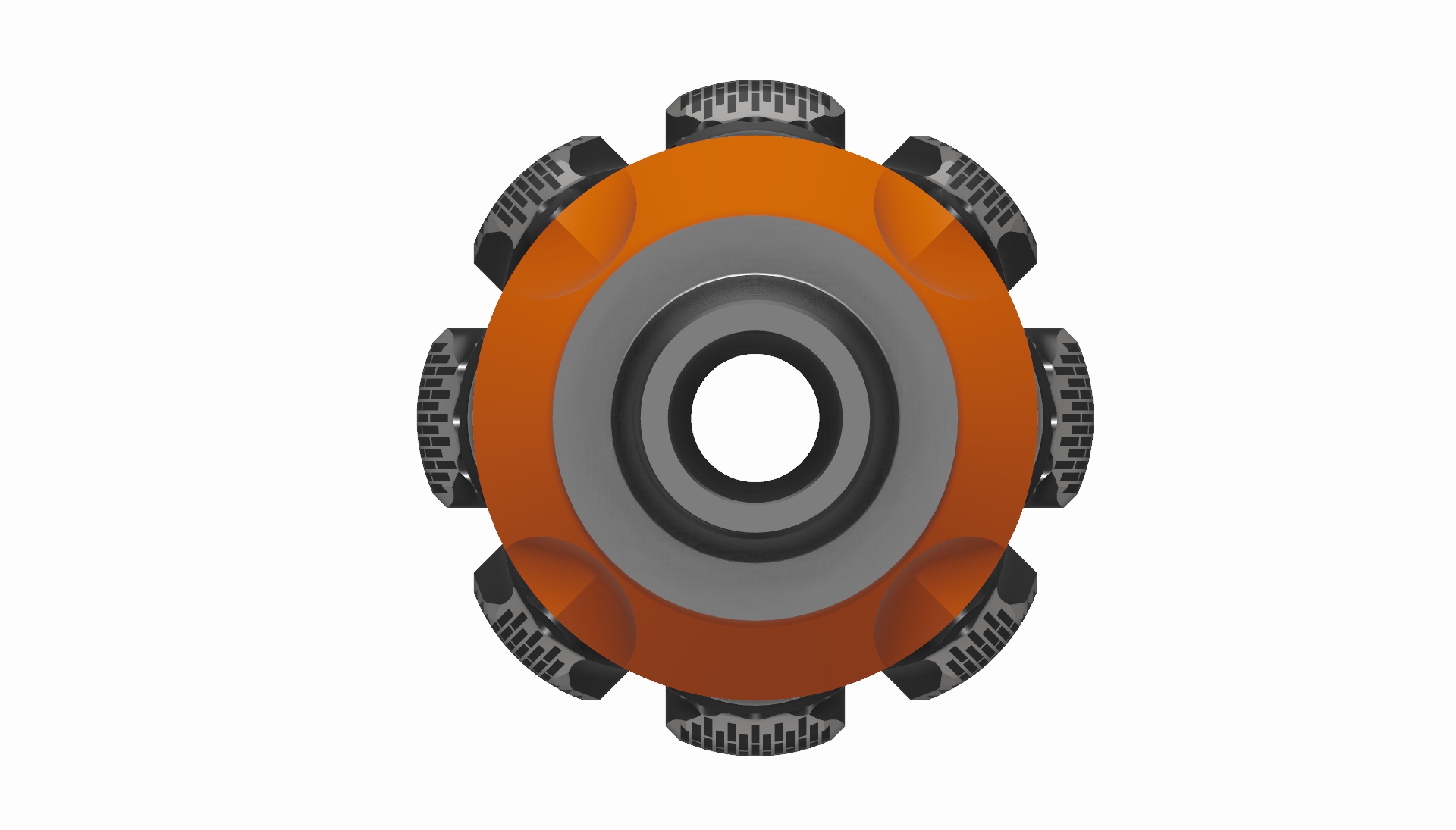

The tool profile and blade orientation improve BHA and drillstring stabilization by reducing torque, drag and torsional vibration – all key causes of borehole enlargement and subsequent BHA component failure.

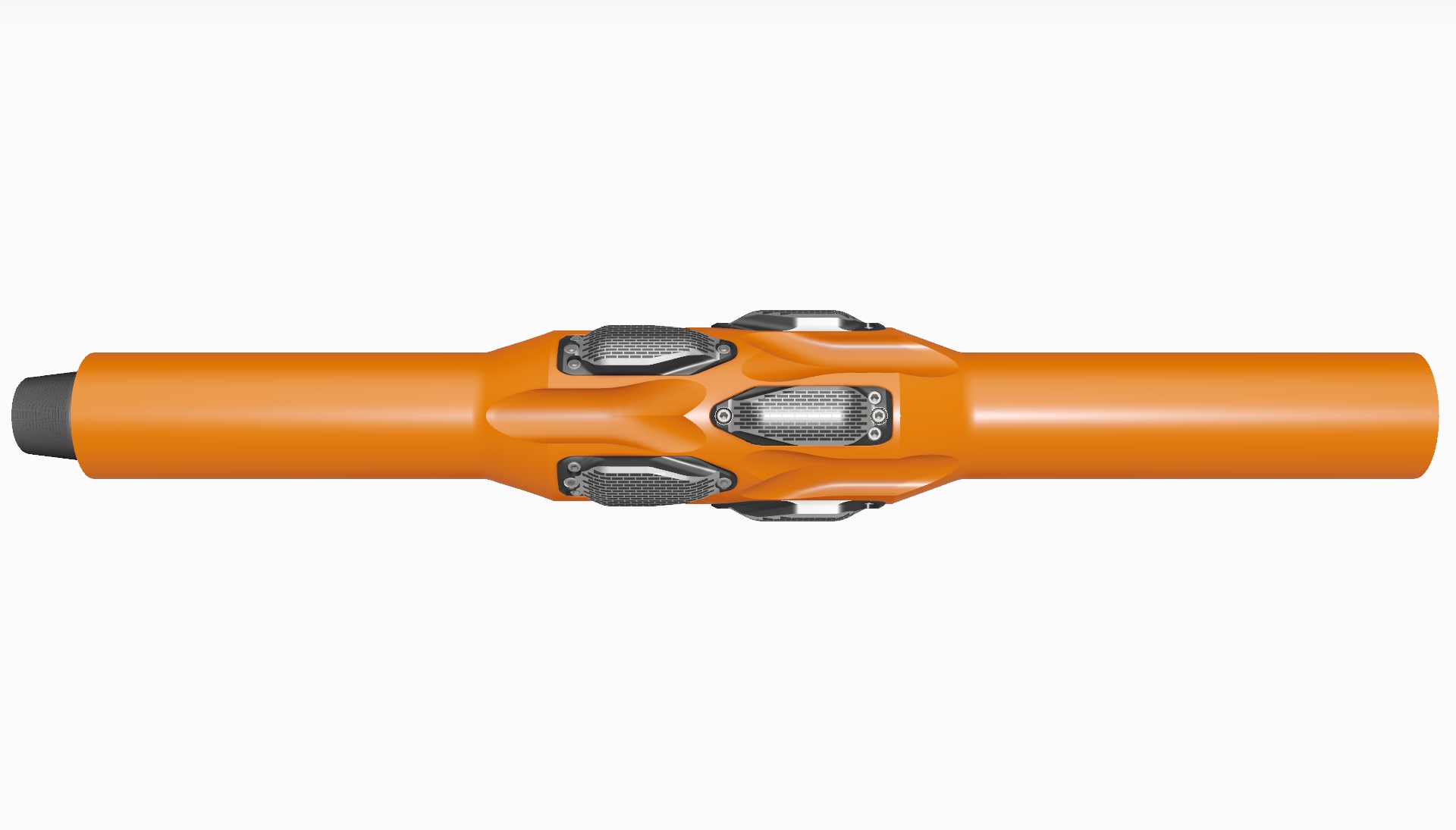

The blades are independently configurable allowing the creation of a unique front or back tapered profile. This can be applied to the top string stabiliser to reduce the risk of hanging up when POOH through cutting bed accumulations and or interbedded formations.

Reach us today to order equipment.
